Rotary Mount

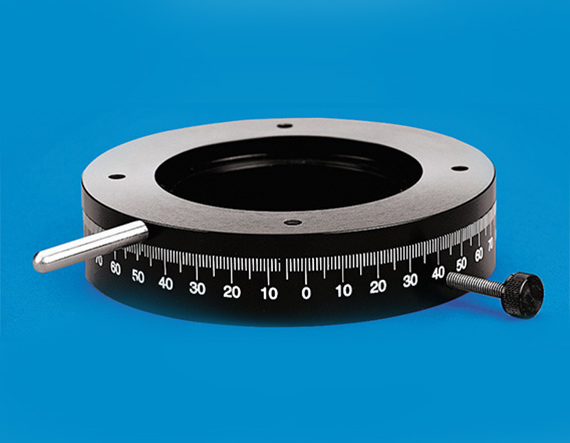

Product Details Manual 360° Rotation Locking Thumb Screw for Secure Positioning and Alignment Compatible with T-Mount Optic Mounts The Rotary Optic Mount allows smooth manual 360° rotation of optics for easy relative angular positioning. An ideal alternative for expensive rotary translation stages, this rotary optic mount can be used for aligning prisms, beamsplitters, polarizers and other optical components using a 180° (90°-0-90°) scale with 1° increments. The mount is compatible with T-Mount Optic Mounts . The Rotary Optic Mount is constructed of black anodized aluminum with a stainless-steel lever. #52-573 includes a 4″ long stainless steel mounting post #59-000 . Specifications General Type: Adjustable – Rotary Physical & Mechanical Properties Scale Divisions: 90°-0-90° with 1° increments Construction: Black Anodized Aluminum Travel (°): 360 Threading & Mounting Thread Type: M42 x 0.75 (T-Mount) Compatible Post: ¼-20 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 235: Compliant ×
