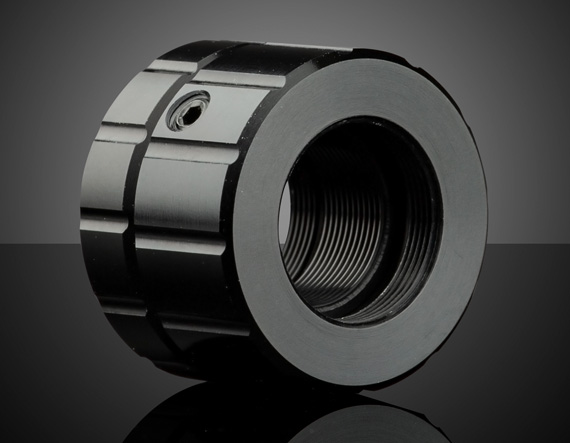

S-Mount Double Female Rotating Ring

Product Details Maximize C, S, and T-Mount Tube Connection Compatibilities Female or Male Thread Options Rotating Rings Also Available TECHSPEC C, S, and T-Mount Double Thread Rings provide a means to connect two C, S, or T-Mount components. Double thread rings come with either double female threads or double male threads. This allows two C, S, and T-Mount components with the same thread termination to be coupled. TECHSPEC C, S, and T-Mount Double Thread Rings with rotating ability are also available. The rotation in those rings allows for post assembly alignment adjustments in applications where alignment is crucial. Specifications General Type: Thread Adapter Function: Thread Adapter Physical & Mechanical Properties Extension Length (mm): 14.0 Total Length (mm): 12.0 Clear Aperture CA (mm): 10.0 Construction: Rotating Outer Diameter (mm): 20.0 Threading & Mounting Thread Type: S-Mount Thread Termination: Double Female Regulatory Compliance RoHS 2015: Compliant × Reach 224: Compliant × Certificate of Conformance: View ×
