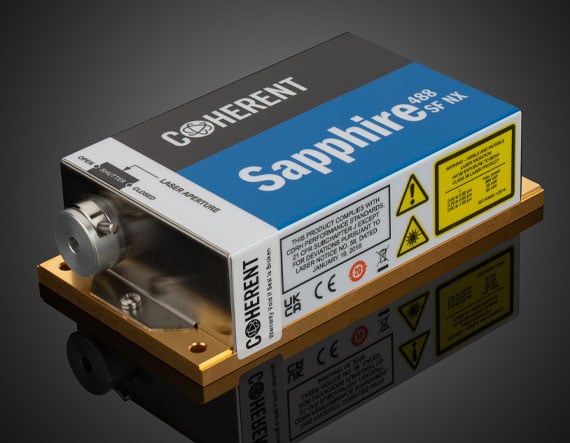

Sapphire SF NX 488nm,150mW CDRH Laser Head

Product Details Ultra-Narrow <1.5 MHz Linewidth Output Powers up to 200mW 488 and 532nm Wavelength Options Coherent Single Frequency Sapphire NX Laser Systems utilize Coherent’s unique Optically Pumped Semiconductor Laser (OPSL) technology to provide a series of CW, single frequency, compact lasers. Available in 488 and 532nm wavelength options, these lasers provide a high-quality diffraction limited output beam and the single frequency design allows for extremely low noise. Flexible remote-control options for USB, RS-232, and analog connection all provide control options via the relevant ports on the CDRH Certified laser controller (sold separately). Coherent Single Frequency Sapphire NX Laser Systems are ideal for applications that require an ultra-narrow linewidth such as Raman spectroscopy, interferometry, holography, metrology, and inspection. These lasers require #70-116 Sapphire SF NX CDRH Certified Controller for power and control, sold separately. Specifications General Warm-Up Time (minutes): <5 Manufacturer: Coherent Type of Laser: Solid State Laser Class - CDRH: IIIb Model Number: 1397892 Physical & Mechanical Properties Pointing Stability after Warm Up (mrad/°C): <5 Pointing Stability (μrad): <30 Optical Properties Spatial Mode: TEM 00 Wavelength (nm): 488.00 Mode Quality, M 2 : <1.1 Beam Diameter Tolerance (mm): ±0.05 Beam Diameter (mm): 0.70 Beam Divergence (mrad): Full Angle: <1.2 Color: Blue Electrical Output Power (mW): 150 Power Stability (%): <2 RMS Noise: ≤0.25% (20Hz to 20MHz) Hardware & Interface Connectivity Power Supply: Power Supply Required and Sold Separately: USA: #70-116 Europe: #70-116 Japan: #70-116 Korea: #70-116 China: #70-116 Output Type: Free Space Environmental & Durability Factors Operating Temperature (°C): 10 to 40 Regulatory Compliance Certificate of Conformance: View ×
