SCHOTT S8612, 165mm Sq., 4.5mm Thick, Matte Plate Bandpass Filter

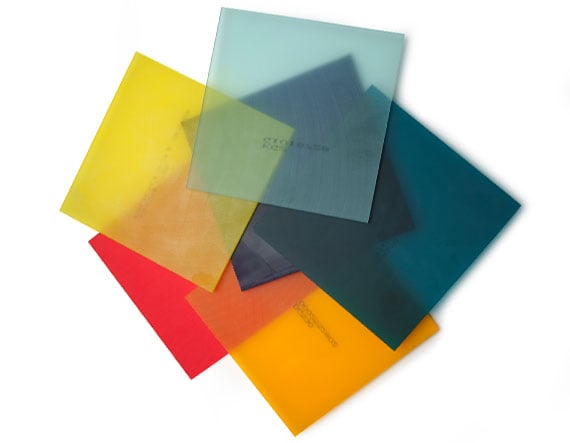

Product Details Unpolished Colored Glass Plates Large Raw Material Sizes up to 165 x 165mm Available in All SCHOTT Colored Glass Types Polished SCHOTT Colored Glass Filters Also Available SCHOTT Matte Colored Glass Filter Plates are unpolished plates of colored glass that are used as raw material to manufacture SCHOTT Colored Glass Filters . With large standard sizes up to 165 x 165mm, these plates can be cut, ground, and polished to meet application requirements for a wide range of filter sizes. SCHOTT Matte Colored Glass Filter Plates are available in all SCHOTT colored glass types , including shortpass (heat absorbing), longpass, bandpass, and neutral density. To learn more about how our custom optical colored glass filter capabilities can be used for your application, see our capabilities page . Specifications General Type: Bandpass Filter Physical & Mechanical Properties Dimensions (mm): 165.0 x 165.0 Length (mm): 165.00 Thickness (mm): 4.50 ±0.5 Width (mm): 165.00 Edges: Break Edges Optical Properties Center Wavelength CWL (nm): 500.00 Glass/Filter Number: SCHOTT S8612 Coating: Uncoated Color: Blue-Green Index of Refraction (n d ): 1.55 Wavelength: NIR Cutoff Material Properties Density (g/cm 3 ): 2.66 Transformation Temperature (°C): 391 Regulatory Compliance Certificate of Conformance: View ×
