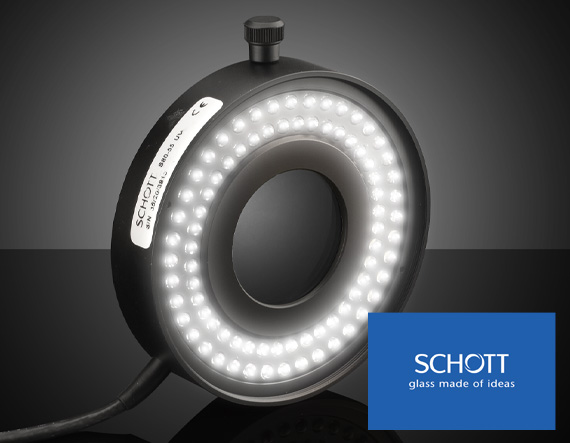

SCHOTT VisiLED UV Ringlight

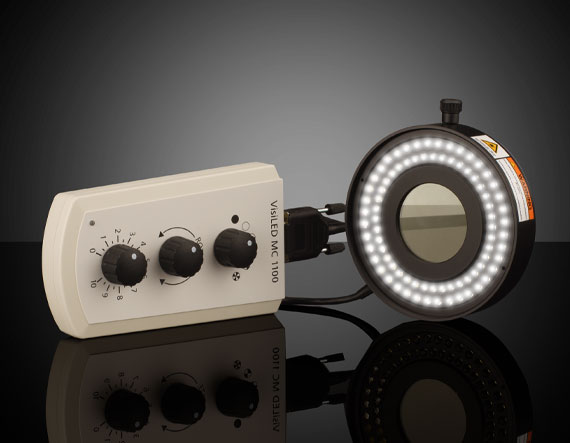

Product Details Switch Between Bright-Field and UV Illumination Maximum UV Illuminance up to 160 W/m 2 Actively Controlled LED Temperature Five Segment Modes (Full, Semi, Quarter-Circle, Dual-Segment, Four-Segment) SCHOTT VisiLED UV Ringlights for stereo microscopes offer bright-field illumination for both visible and UV applications. The homogenous white light displays samples in natural color while UV excitation reveals previously invisible parts of the sample through fluorescence. The SCHOTT MC 1100 Controller makes it easy to switch between the two illumination modes and controls light intensity and illumination direction. VisiLED ringlights offer extremely homogeneous and shadow-free illumination in a robust metal housing, with a well-designed heat sink enabling maximum brightness and a long lifetime. In combination with accessories such as diffusers, polarizer sets and adaptor rings, multiple illumination modes are possible. SCHOTT VisiLED UV Ringlights are used in variety of applications including forensic and life sciences, industrial coatings, and structural crack detection. Note: Power supply, power cord and controller are required and sold separately. Compatible only with SCHOTT MC 1100 Controller. A UV protection filter is included. Specifications General Model Number: 400.200 LED Lifetime (hours): White: >50,000 UV: >1,000 Number of LEDs: 40 White, 40 UV Type of Illumination: LED Illuminator Manufacturer: SCHOTT Geometry: Ring Light Illumination Mode: Variable Irradiance: UV: 160 W/m 2 White: 100 klx at 75mm Physical & Mechanical Properties Height (mm): 25 Inner Diameter (mm): 66 Outer Diameter (mm): 114 Optical Properties Color: UV Working Distance (mm): 50 – 135 Wavelength Range (nm): 340 – 420 (UV) Center Wavelength CWL (nm): 375.00 (UV) Hardware & Interface Connectivity Input Voltage (V): 21-24 DC Power Supply: Power Cord Required and Sold Separately: USA: #16-792 Europe: #18-492 Japan: #78-580 Korea: N/A China: N/A Threading & Mounting Mounting Threads: M4 x 40 Regulatory Compliance Certificate of Conformance: View ×
