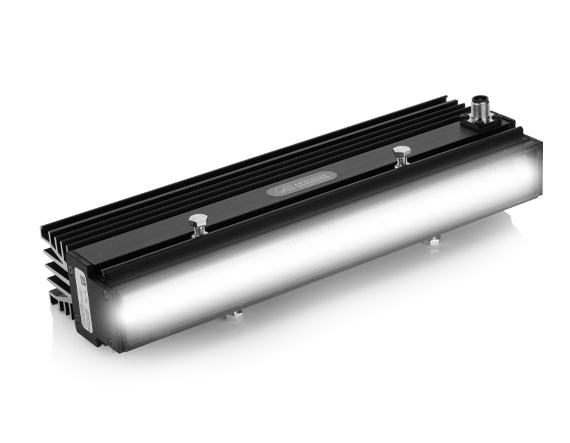

Sealed 300mm 530nm Line Light

Product Details IP67 For Dust and Debris Protection High Intensity Illumination Profile Available in UV, White, Blue, Green, Red, & NIR Ideal For Line Scan Applications The Advanced Illumination Sealed High Intensity Line Lights provide a uniform illumination profile for line scan applications in rugged environments. These lights are IP67-rated for protection against dust, debris, and liquid, offering reliable performance in harsh environments. The lights are available in UV, white, blue, green, red, and NIR wavelengths and are passively cooled for continuous long-term operation. The Advanced Illumination High Intensity Line Lights feature an embedded controller that is designed for continuous operation and housed within the light itself. These lights are ideal for rugged line scan applications including inspection of sheetrock, lumber, and ceramics, and food and beverage washdown environments. Specifications General Type of Optics: Collimated Type of Illumination: LED Illuminator Note: Designed with embedded controller engineered for continuous-only operation with the configured light head. Manufacturer: Advanced Illumination Geometry: Line Light Illumination Mode: Constant Physical & Mechanical Properties Length (mm): 300.00 Dimensions (mm): 309.9 L x 51.1 W Weight (g): 1442 Optical Properties Color: Green Wavelength (nm): 530 Working Distance (inches): 0.5-23 Hardware & Interface Connectivity Connector: 4-pin Male M12 Operating Voltage (V): 24V DC, 3A Power Supply: Power Supply Required and Sold Separately: #73-977 Threading & Mounting Mount: T-Slot for M6 Nut Environmental & Durability Factors Operating Temperature (°C): 0 °C to 35 °C Environmental Rating: IP67 Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × Reach 247: Contains SVHC(s) ×
