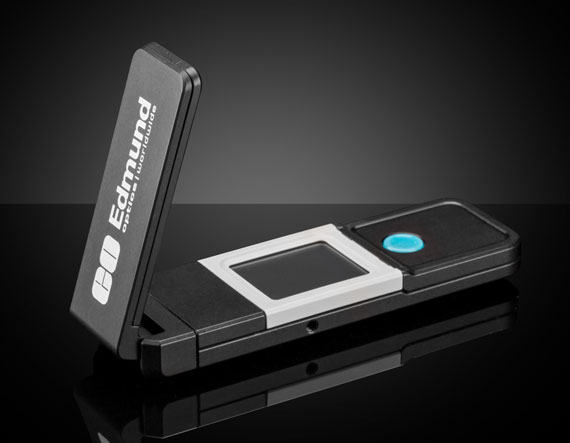

Silicon Based Touchscreen Portable Laser Power Meter

Product Details Small Portable Design with Touchscreen Display Computer and Software Not Required High Damage Threshold USB Rechargeable Battery Touchscreen Portable Laser Power Meters feature LCD displays with touchscreen controls, the ability to adjust wavelength, brightness and screen orientation, and min/max display. Available in two designs, one as a silicon based sensor and the other an absorber, these portable power meters can transfer data to a computer for data logging via a mini USB port. The silicon sensor model (#34-514) features a folding body design with a click stop at 90 degrees, providing the unique ability of being placed on an optical table unmounted when oriented at 90 degrees. If the beam height is 78mm off the optical table, you can simply set the folded power meter directly onto the table. Both Touchscreen Portable Laser Power Meter models feature 8-32 mounting holes for table top mounting and rechargeable battery. Note: Mini-USB cable not included. Specifications General Operating Lifetime (hours): 17 Response Time (s): 0.2 Type of Display: Touch screen color LCD Note: USB Port Available for Data Transfer Physical & Mechanical Properties Length (mm): 212.00 Weight (g): 150.00 Width (mm): 41.00 Depth (mm): 15.0 Accuracy (%): 7.00 Optical Properties Wavelength Range (nm): 320 – 1100 Spectral Range: 320 – 1100nm (attenuator Off) 400 – 1100nm (attenuator On) Sensor Maximum Sensor Size (mm): 10 x 10 Electrical Incident Power (mW): 36 (attenuator Off) 300 (attenuator On) Maximum Incident Power Density (W/cm 2 ): 100.00 Power Range: 0.3 nW – 36 mW @ 980nm (attenuator Off) 3 nW – 300 mW @ 980nm (attenuator On) Noise Equivalent Power (pW): 10 @ 980nm Hardware & Interface Connectivity Power Supply: USB Rechargeable Battery Threading & Mounting Mounting Hole for Screw: 8-32 threaded (x1) Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 242: Compliant ×
