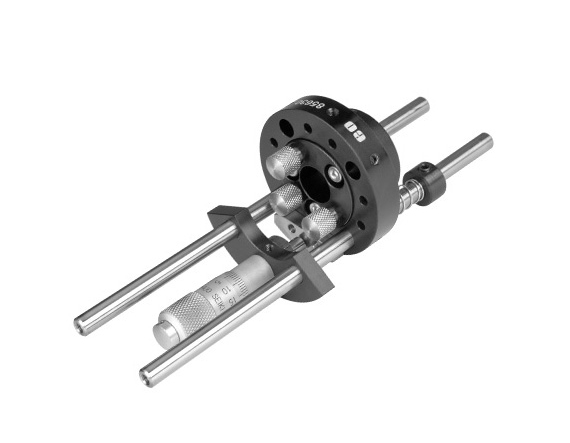

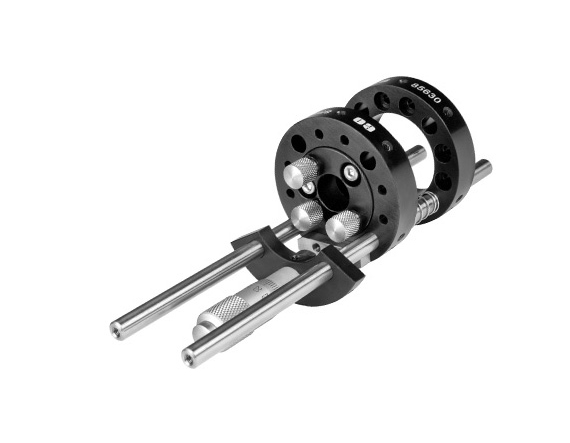

Simple Translation Micrometer Mount Kit

Product Details Micrometer/drive mechanism and 6mm Support Rods sold separately. Compact Design with Built-In Translation Assembly Configurable for ½” or 1″ Travel Accepts Micrometers with 3/8” Shank Step-by-Step Assembly Instructions Available TECHSPEC Cage System Linear Translation Assemblies are used to add linear translation to a TECHSPEC Optical Cage System setup. The built-in translation assembly enables coarse positioning along the cage rods. Once fixed to the cage rods, fine translation can be done using a micrometer drive. By adding additional springs and replacing the 3mm x 50mm rods ( #85-470 ) with two 3mm x 75mm ( #86-847 , sold separately), the ½” standard travel can be extended to 1″. TECHSPEC Cage System Linear Translation Assemblies are available in two options: simple translation utilizes 6mm rods and standard plates, while ball bearing translation utilizes ball bearing slides for low-friction translation. Note: Micrometer/drive mechanism and 6mm Support Rods sold separately. Specifications General Contents of Kit: Micrometer Holder, Protective Steel Plate, and #86-838 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View ×
