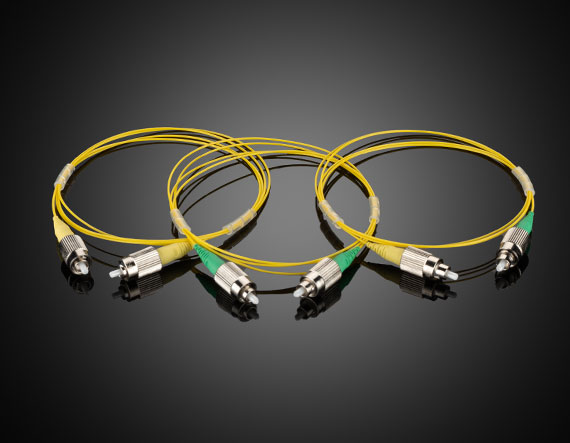

Single Mode Patchcord, FC/PC, 0.13NA, 780-970nm, 5m

Product Details FC/PC, FC/APC, and Hybrid Terminated Connectors Patchcords for Wavelengths from 450 – 1650nm 1m, 2m and 5m Standardized Lengths Available Single Mode Fiber Optic Patchcords are available with FC/PC or FC/APC terminated connectors. Hybrid terminated connectors enable users to adapt FC/PC or FC/APC patchcords for compatibility with existing fiber assemblies. Designed for use with lasers from 450 – 1650nm in 1m, 2m and 5m standard lengths, these Single Mode Fiber Optic Patchcords are ideal for applications including beam delivery, microscopy, and telecommunications. Each connector is engraved with the fiber type for easy integration and identification. Specifications General Type: Patchcord Fiber Cable Type: 780HP Physical & Mechanical Properties Cladding Diameter (μm): 125 ± 1.0 Length (m): 5 Jacket Material: 900µm Yellow Hytrel Tubing Coating Diameter: 245 ± 15µm Optical Properties Numerical Aperture NA: 0.13 Attenuation (dB/km): ≤3.5dB/km @ 780nm Wavelength Range (nm): 780 – 970 Mode Field Diameter (nm): 5.0 ± 0.5µm @ 850nm Hardware & Interface Connectivity Connector: FC/PC Insertion Loss (dB): 1.5 @ 780nm Regulatory Compliance Certificate of Conformance: View × REACH 241: Compliant ×
