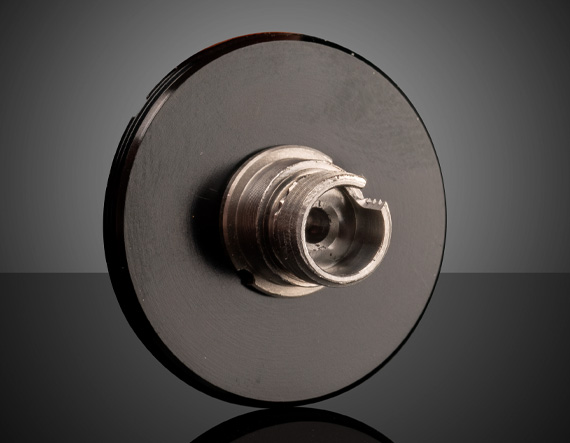

SM1, FC/APC Fiber Connector Adapter

Product Details C-Mount, S-Mount, SM1, and SM05 Threading Low Profile Designs for Minimal System Intrusion Available for SMA, FC, or FC/APC Fiber Connectors Tube System Fiber Connector Adapters provide an easy and simple solution for integrating connectorized fiber into C-Mount, S-Mount, SM1 (1.035” x 40 TPI), or SM05 (0.535” x 40 TPI) systems. C-Mount Fiber Connector Adapters are available for SMA, FC, or FC/APC connectors. S-Mount Fiber Connector Adapters are available for SMA, FC, or FC/APC connectors. SM1 and SM05 Fiber Connector Adapters are available for FC/APC connectors. Connectors can be threaded into any female C-Mount, S-Mount , SM1, or SM05 component. Tube System Fiber Connector Adapters can be oriented in either direction for maximum flexibility. Optional housings are sold separately. Specifications Thread Type: 1.035 x 40 TPI (SM1) Construction: Black Anodized Aluminum Mount, Stainless Steel Fiber Connector Function: Optic Mount (Fixed) Type of Optics: Fiber Patchcord Fiber Connection: FC/APC Regulatory Compliance RoHS 2015: Compliant × Reach 224: Compliant × Certificate of Conformance: View ×
