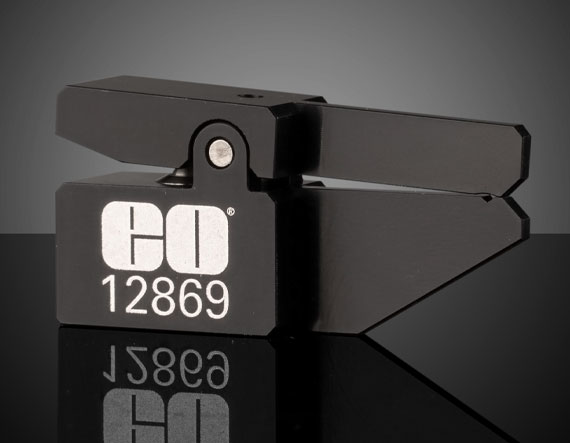

Small Lens Clamp for 1-3mm Dia. Optics

Product Details Ideal for Ball Lenses and GRIN Lenses as small as 1mm Diameter Spring-Loaded to Hold Small Diameter Optics 1” Offset Design Allows Easy Placement with Shorter FL Lenses 1/4-20 TPI Mounting Thread TECHSPEC Small Optic Mounts are ideal for mounting 1 – 8mm diameter lenses. The clamps can be mounted horizontally, where the optical centerline is on a 25.4mm offset from the mounting centerline, or mounted vertically, where the optical centerline is 44mm higher than the post-mounting flat surface. TECHSPEC Small Optic Mounts feature a spring-loaded construction that ensures secure mounting of small diameter lenses regardless of orientation. The mounting clamp width (2mm for #12-869, 3.5mm for #13-800) is thin enough to allow two short focal length lenses to be placed directly next to each other. These mounts include ¼-20 TPI threads for post mounting and can be adapted to metric posts with adapter #53-928 to easily integrate into any bench-top system. Specifications General Type: Fixed Type of Optics: Circular Physical & Mechanical Properties Construction: Black Anodized Aluminum Threading & Mounting Size of Compatible Optics (mm): 1.0 – 3.0 Compatible Post: ¼-20 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 235: Compliant ×
