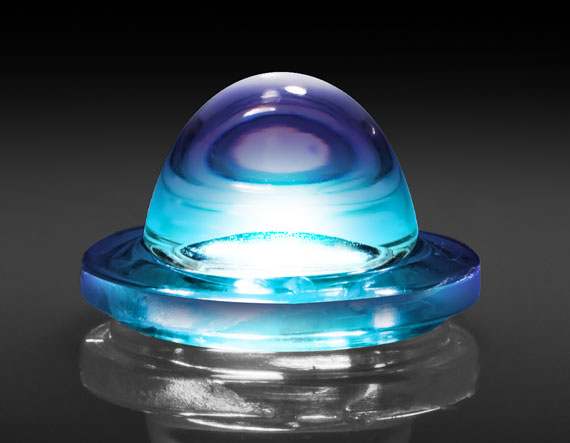

SMO 10° Single Element Lens

Product Details Five Lens Shape Options to Customise Illumination Profiles Over 90% Efficient from UV-A through Visible and Near IR Solder Pads Allow for High-Precision Placement LumenFlow Surface Mount Optics deliver high optical efficiency in a compact, low-profile package that easily integrates into photonic assemblies. Molded with tight tolerances, each optic ensures repeatable performance across production batches. Designed for automated placement and soldering on a PCB simultaneously with SMT components, these optics support high-volume manufacturing workflows while reducing assembly costs and cycle times. LumenFlow Surface-Mount Optics are made with optical grade silicone which doesn’t melt or reflow and has an operating temperature of 200C. Silicone is also water resistant, submersible, UV resistant, and resists impact and environmental wear, ensuring long-term stability in demanding applications. Available in a broad range of focal lengths, and form factors, these optics meet the needs of diverse machine-vision, sensing and illumination applications from UV-A to 1.6µm. A wide range of Beam Angles, and Field Angles, which contain 50% and 10% of the light intensity of the illumination output respectively (also known as FWHM, Full Width Half Maximum and FWTM, Full Width Tenth Maximum) allow these to be used to create a variety of illumination patterns. Specifications General Note: Clamp-ring soldered Physical & Mechanical Properties Diameter (mm): 10.50 Height (mm): 8.74 Optical Properties Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More SILASTIC MS-1002 Moldable Silicone Color: White Overall Efficiency (%): 0.84 Full Width-Half Max FWHM (°): 11 Full Width-Tenth Max FWTM (°): 24 Regulatory Compliance Certificate of Conformance: View ×
