Spatial Filter Movement

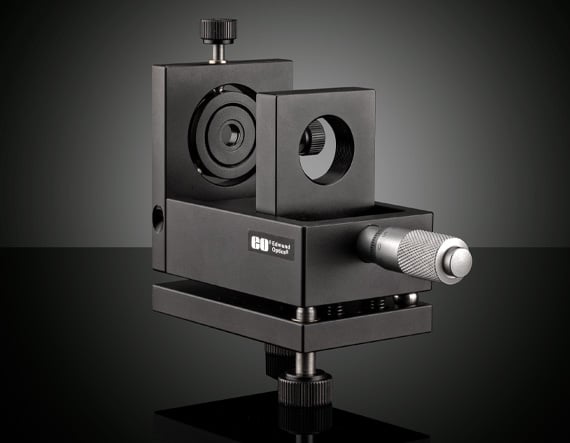

Product Details X-Y Adjustable Pre-Mounted on a Gimbal Tilt-Table Open-Style Design Our precision open-style spatial filter mechanism features a ball bearing, spring-loaded dual stainless rail objective movement with a micrometer drive. The pinhole mount accepts standard ⅜” (9.5mm) discs from our line of Pinholes & Slits and is X-Y adjustable via two fine thumbscrews. This entire assembly is mounted on a gimbal tilt-table with X-Y two-axis adjustment by two fine thumbscrews. A ¼-20 tap hole on the gimbal platform base allows for easy mounting to posts or other positioning equipment. The Understanding Spatial Filters application note will help you select the appropriate components for your laser application. Note: Spatial Filter does not operate with 5.5mm objective. Spatial Filter Movement is only compatible with the following objectives: DIN Achromatic 4X ( #43-902 ), DIN Plan 4X ( #67-706 ), and the JIS Achromatic 10X. Specifications Physical & Mechanical Properties Construction: Black Anodized Aluminum Travel (mm): Pinhole: ±3 in X-Axis and Y-Axis Objective: 19 in Z-Axis Aperture (mm): 9.5 Accuracy (μm): 2.5 in Z-Axis Threading & Mounting Mount: 36 TPI 55° Whitworth (DIN Objective) Mounting Threads: ¼-20 Leadscrew Thread: 50.8 TPI in X-Axis and Y-Axis Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View ×
