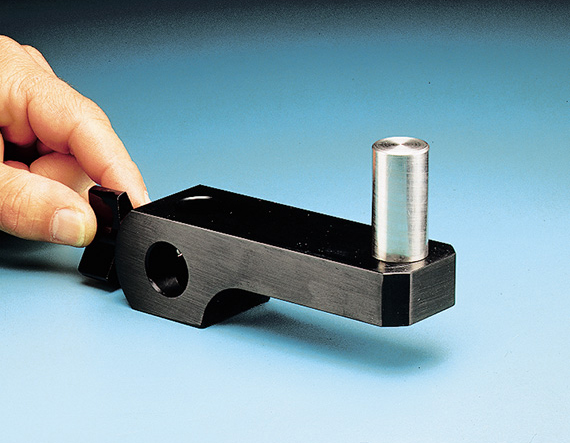

Swivel Arm

Product Details Swivel Arm for Added Flexibility 90° Angle Mounts Connect Horizontal Arms onto Vertical Posts Ring Mounts for Increased Versatility Imaging System Bases , Rack and Pinion Focusing Mounts , and Stainless Steel Posts Also Available Accessories for Imaging Systems are available to increase the versatility of an imaging system. Products in this family include a swivel arm, Infinity Microscope, 90° angle mount, and ring mounts. The swivel arm adds an axis of rotation to the rack and pinion-focusing mounts. The swivel arm can rotate around a vertical post, and the rack and pinion focus mount can rotate around the ¾” post attached to the swivel arm. The Infinity microscope mounting adapter is compatible with Rack and Pinion Mount #39-357 and reduces the thru hole diameter to 58mm. The 90° angle mount, offered in Accessories for Imaging Solutions, allows the mounting of posts at 90° in optical systems. Ring mounts are available for attaching light sources, articulating arms, straight posts, or any ¼-20 accessory to standard mounting hardware. Features 90° Angle Mount #39-355 features two ¾” thru holes at 90° with locking knobs. All Ring Mounts feature ¼-20 mounting hole, set screw for securing post, or optical component within the inner diameter. Swivel Arm #03-684 features a 0.75″ diameter post which accepts rack and pinion focusing mount and allows swivel movement. Infinity Mounting Adapter #39-358 features male and female T-thread to replace 24mm tube section of infinity lens. Specifications General Type: Mounting Adapter Dimensions (mm): 127 x 38.1 x 38.1 Dimensions (inches): 1.5 W x 5 L x 1.5 H Weight (lbs): 1.19 Construction: Black Anodized Aluminum with Stainless Steel Post Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View ×
