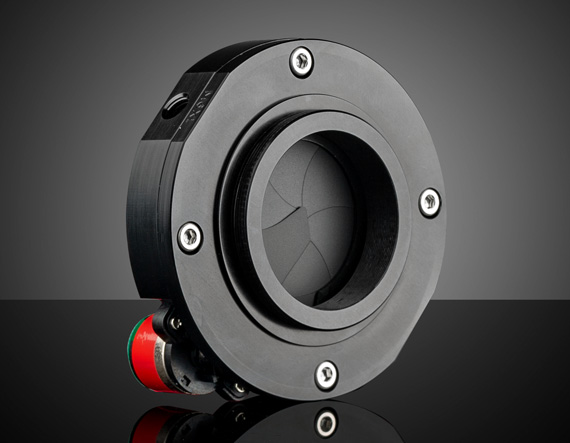

T-Mount Electrical Shutter

Product Details Male and Female C- and T-Threads for Easy Integration Simple On/Off Operation with TTL Input M6 and ¼-20 Tapped Holes for Post Mounting The C and T-Mount Motorized Shutters are ideal for controlling detector exposure or for use as optical choppers. The shutters operate in a normally closed position and open when a 5VDC signal is applied to the input. The C and T-Mount Motorized Shutters have been designed to integrate with other C and T-Mount components and include M6 and ¼-20 threaded holes for post mounting to standard metric or English breadboards. To control the opening and closing the shutter, use the On/Off Controller (#87-325) or TTL input. These shutters have male and female C- and T- threads for easy integration. Note: Shutter leaves are fragile and should not be handled or used with any laser. Specifications General Activation Time (ms): 90 Deactivation time (ms): 50 Function: Shutter Operating Life Cycle: 100,000 Physical & Mechanical Properties Outer Diameter (mm): 69.0 Aperture (mm): 30.0 Weight (g): 100 Extension Length (mm): 16.0 Electrical Coil Resistance (Ω): 90 @ 25°C Coil Resistance Tolerance (%): ±10 Operating Frequency (Hz): 7 (full open/close) Hardware & Interface Connectivity Operating Voltage (V): 4.5 V ~ 5.5 V DC Threading & Mounting Mount: T-Mount Thread Type: T-Mount Compatible Post: M6 x 1.0, ¼-20 Environmental & Durability Factors Operating Temperature (°C): -10 to +60 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View ×
