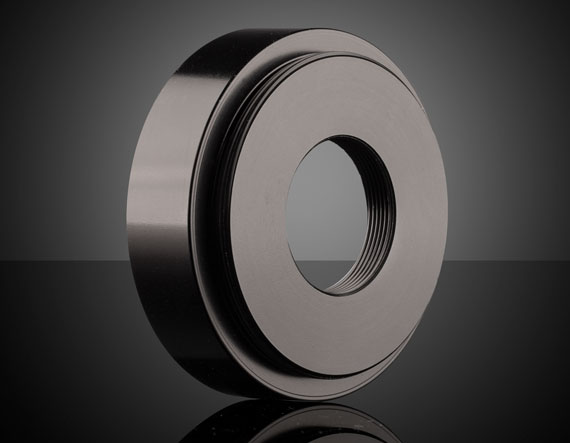

T-Mount to Olympus (RMS/DIN) Adapter

Product Details Integrate Microscope Objectives to Create Digital Microscope Systems Feature Male C-Mount, T-Mount, or ID1 (SM1) Thread and Female Objective Thread Black Anodized Aluminum Construction TECHSPEC Tube System Objective Adapters integrate microscope objectives into C-Mount, T-Mount, or ID1 (SM1) systems. These adapters offer female threads for multiple standard objective thread types, including Olympus (RMS/DIN), Mitutoyo (M26 x 0.706), and Nikon (M25 x 0.75). A black anodized finish increases these adapters’ durability while reducing stray light and reflections within the system. TECHSPEC Tube System Objective Adapters allow for the personalization and customization of imaging systems. They can be used to construct digital microscope systems by allowing microscope objectives to be integrated into digital camera systems. Specifications Male Thread: T-Mount (M42 x 0.75) Female Thread: RMS/DIN (0.8″ – 36 TPI) Type: Objective Mount Adapter Outer Diameter (mm): 48.0 Objective Thread: RMS/DIN (0.8″ – 36 TPI) Thread Type: T-Mount Length (mm): 15 Extension Length (mm): 11.5 Function: Objective Adapter Type of Optics: Objective Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × REACH 241: Compliant ×
