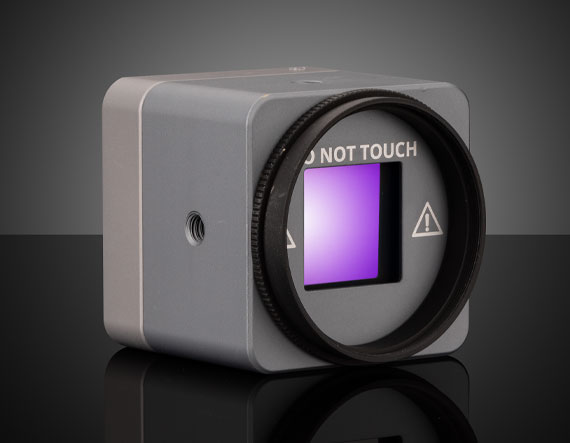

TaperCamD-LCM Beam Profiler

Product Details Designed for Use from 355 to 16000nm Compatible with Beam Diameters Down to 52µm Robust and Easy to Use Free Software Provided Measure Beam Wander, M², Divergence, and More DataRay Camera Beam Profilers provide excellent solutions for beam analysis of both continuous wave and pulsed laser sources. Each beam profiler features an integrated CMOS sensor (IR profilers feature Microbolometer sensors) that eliminates comet trailing for higher resolution output and allows for update rates of 60+ Hz. Sensors are available with active sizes of 6.6, 11.3, and 25mm horizontals, enabling measurement of large beam diameters. DataRay Camera Beam Profilers have the added advantage of a free, robust software with analysis features such as M² measurement, beam wander and logging, and instrument alignment. These profilers are USB3.0/2.0 powered and include a 3m flexible screw locking cable. Neutral density filters with optical densities of 1.0, 2.0, and 4.0 are included. Specifications Physical & Mechanical Properties Dimensions (mm): 57 x 57 x 54 Dimensional Accuracy: ±1µm Optical Properties Spectral Range: 355 – 1150 Minimum Stimulation, Pulsed: USB 2.0: 6.3 kHz USB 3.0: 12.6 kHz Beam Diameter (μm): 125 (10 Pixels) Sensor Pixel Size, H x V (μm): 12.5 x 12.5 Pixels (H x V): 2,048 x 2,048 Sensing Area, H x V (mm): 25 x 25 Sensor Format: 1″ Frame Rate: 60Hz Electrical Signal to Noise S/N Ratio (dB): 2,500:1 Peak Noise (nW/cm 2 ): 34 dB optical / 68 dB electrical Threading & Mounting Mount: 1/4-20 thread Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × REACH 241: Contains SVHC(s) ×
