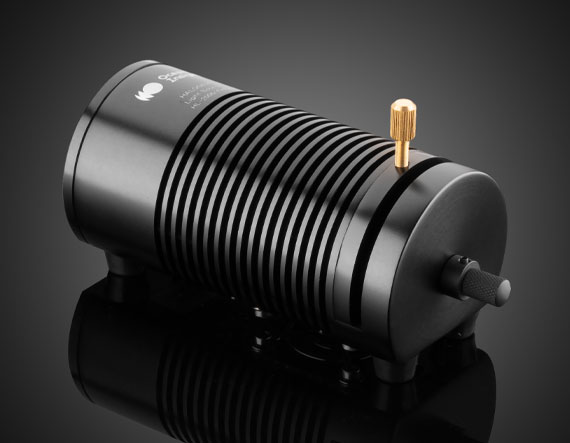

Tungsten-Halogen Spectroscopy Illuminator

Product Details Stable, High-Quality Output Across Broad Wavelength Ranges from 185–2500 nm Deuterium-Tungsten, Xenon, Tungsten-Halogen Lamp Types Available Fully Compatible with Ocean Optics Spectrometers and Accessories Recommended Patchcords Available Here Ocean Optics Spectroscopy Illuminators offer a flexible range of UV–NIR light sources to pair with Ocean Optics spectroscopy systems. Choose from Tungsten-Halogen for stable VIS–NIR output (360–2400nm), Xenon for high-intensity, pulsed broadband UV–NIR illumination (185–2500nm), or Deuterium-Tungsten for continuous coverage from deep UV through NIR (210–2500nm). Typical applications include reflectance, transmittance, absorbance, and fluorescence measurements where reliable, well-matched illumination is essential. Ocean Optics Spectroscopy Illuminators are designed for lifetimes of up to 10,000 hours and feature SMA fiber connections. Specifications General Type: Tungsten-Halogen Illuminator Model Number: HL-2000-LL-FHSA Note: Power supply, integrated shutter, integrated filter holder for filters up to 25 mm square or 25 mm round in diameter and 4 mm in thickness, and integrated attenuator included. The illuminator has an optical output drift of <0.1% per hour Operating Lifetime (hours): 10000 Type of Light Source: Long Lifetime Tungsten Halogen Warm-Up Time (minutes): 10 Physical & Mechanical Properties Weight (kg): 0.5 Dimensions (mm): 58 x 59 x 140 Optical Properties Wavelength Range (nm): 360 - 2400 Light Source Stability (%): 0.25% peak-to-peak Electrical Output Power (mW): 4.5 Power Consumption (W): up to 15 Nominal Bulb Power (W): 7 Hardware & Interface Connectivity Connector: SMA 905 Power Requirement: 12 VDC Environmental & Durability Factors Operating Temperature (°C): 5 to 35 Color Temperature (K): 2800 Operating Humidity: 5–95% without condensation at 40°C Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 250: Compliant ×
