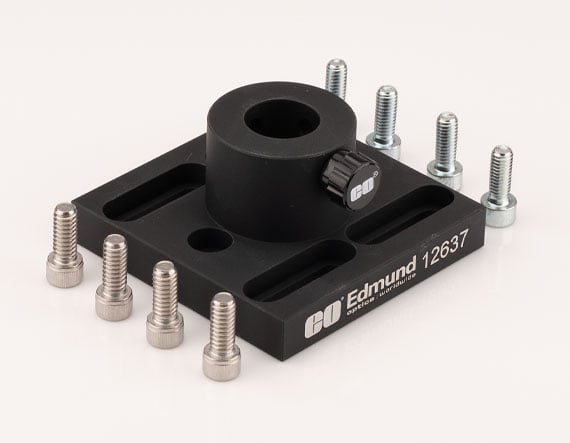

Universal Breadboard Adapter for ¾” Posts

Product Details Variety of Bases Available Stand-Alone or Benchtop Compatible Bases Designed for Use with 0.75″ Stainless Steel Posts Rack and Pinion Focusing Mounts , and Accessories also Available Imaging System Bases are designed to construct imaging systems utilizing our 0.75″ (19.05mm) diameter, 16 TPI mounting posts. The Large Workstation Platform and Small Platform Base feature sorbothane feet to minimize vibration. The Circular Base is weighted for added stability. The Universal Breadboard Adapter for ¾” Posts features slots that allow for mounting to both metric and English optical tables and breadboards . Imaging System Bases are available for a variety of system mounting and construction needs. Specifications General Type: Imaging System Base Compatible Post Diameter (mm): 19.05 (3/4″) Physical & Mechanical Properties Length (mm): 76.20 Length (inches): 3.0 Width (mm): 76.20 Width (inches): 3.0 Construction: Anodized Aluminum Height (inches): 1.5 Weight (lbs): 0.5 Height (mm): 38.10 Threading & Mounting Mounting Threads: 0.75″ Dia. Hole with Locking Screw Regulatory Compliance RoHS 2015: Compliant × Reach 224: Compliant × Certificate of Conformance: View ×
