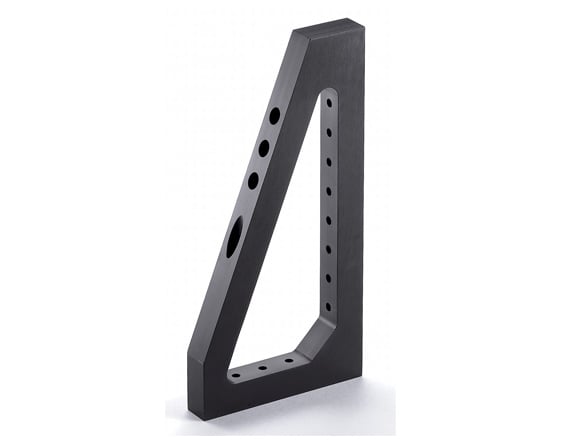

Universal Right Angle Bracket

Product Details Universal Design Works With Metric and English Bench Plates and Breadboards Uses Standard ¼-20 or M6 Socket Head Cap Screws Black Anodized Aluminum Construction Universal Right Angle Brackets allow our English and Metric Economical Bench Plates to be mounted orthogonally to a Composite Breadboard or another bench plate. These brackets are made from 1″ thick black anodized aluminum. Thru-slots on the vertical and horizontal arms of the bracket allow for the use of both M6 and ¼-20 SHCS for mounting, and accommodate breadboard hole spacing of 1″ and 25mm. Universal Right Angle Brackets feature a ubiquitous design that enables easy integration of additional components into any benchtop system. For applications that require more structural support, purchase the Universal Right Angle Bracket, Pair ( #11-158 ). Note: Not recommended for use with plates taller than 12” or 300mm. Specifications General Type: Universal Physical & Mechanical Properties Length (inches): 12.0 Width (inches): 6.0 Thickness (inches): 1.0 Construction: Black Anodized Aluminum Threading & Mounting Mounting Threads: (9) ¼-20 (M6x1.0) S.H.C.S. Thru-Slots Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 250: Compliant ×
