UV Curing Oven

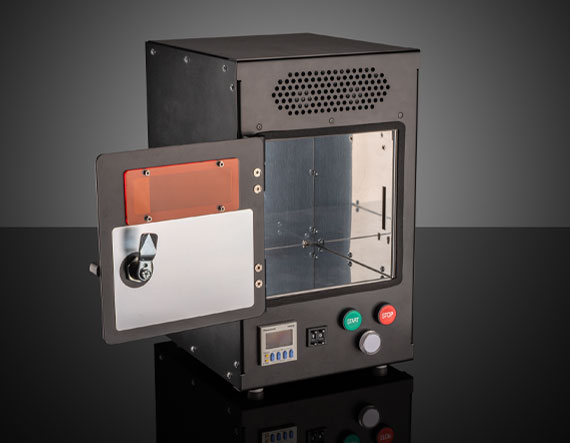

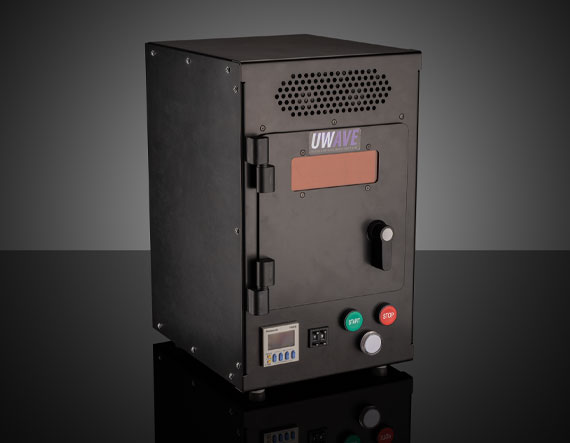

Product Details Up to 250mW/cm² UV Irradiance 365nm Center Wavelength Digital Control of UV Intensity and Exposure Time The UV Curing Oven is a compact 246 x 282 x 410mm UV LED curing chamber that can provide high intensity UV irradiance up to 250mW/cm2 for fast curing. Featuring a digital controller, UV light intensity can be fixed between 10% and 99% with adjustable exposure times ranging from 1 second to 100 minutes. UV reflective panels in the curing chamber provide homogeneity greater than 85% on the irradiated surface for reliable and repeatable UV emission. The UV Curing Oven is ideal for a wide range of bonding, curing, drying, hardening, and photolithography applications. A UV protection system between the lamp and the door avoids unwanted UV exposure by shutting off the UV illumination if the door is open. FAQ(s) Is the UV curing oven safe to operate? Yes. It features a door interlock system, 99.9% UV-blocking viewing window, and auto shut-off to prevent accidental UV exposure. What are common applications of UV curing ovens? Typical uses include bonding, drying, hardening, photolithography, and curing specialty inks, adhesives, and coatings in research and industrial settings. Specifications Physical & Mechanical Properties Dimensions (mm): 246 x 282 x 410 Chamber Size D x W x H (mm): 190 x 175 x 185 Weight (kg): 14 Optical Properties Wavelength (nm): 365.00 Irradiance (W/cm 2 ): 0.25 Max Electrical Power Requirement: AC 100 – 305V Regulatory Compliance Certificate of Conformance: View ×
