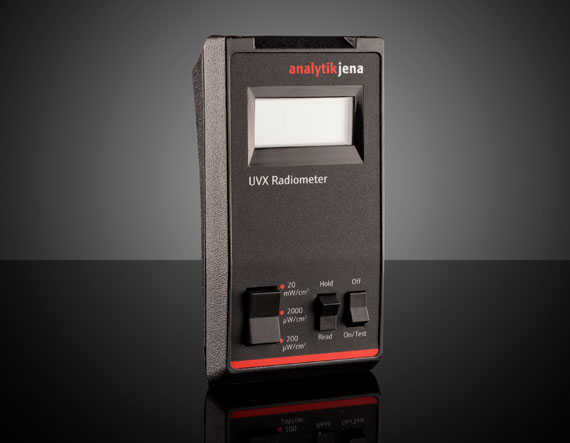

UV Radiometer Unit

Product Details Designed to Detect UV Wavelengths from 250 – 380nm NIST Certified Sensors 9V Battery Provides up to 120 Hours of Operation Requires One NIST Traceable Sensor for Operation The NIST Certified UV Radiometer is ideal for inspecting ultraviolet light sources in a variety of quality control applications. The NIST Certified UV Radiometer is powered by a standard 9V battery for up to 120 hours of operation. Three NIST certified interchangeable sensors are available to detect a wide range of ultraviolet wavelengths from 250 – 380nm. The NIST Certified UV Radiometer’s range switch allows the selection of three intensity ranges. Note: The UV Radiometer Unit ( #88-136 ) requires one NIST Traceable Sensor ( #88-137 , #88-138 , or #88-139 ) for operation. Specifications General Type of Display: 3.5 digit LCD Conversion Rate: 2.8 readings/sec Physical & Mechanical Properties Weight (kg): 0.3 Dimensions (mm): 157 x 51 x 91 Accuracy (%): ± 2 Electrical Intensity Range: Switchable: 0 – 20 mW/cm 2 0 – 200 μW/cm 2 0 – 2000 μW/cm 2 Hardware & Interface Connectivity Power Requirement: 9 V Battery (not included) Regulatory Compliance Certificate of Conformance: View ×
