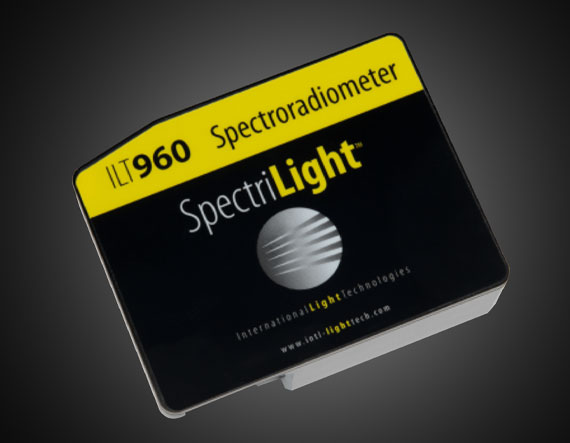

UV Spectrometer System w/ Right Angle Diffuser

Product Details Available in Three Different Wavelength Options 180 – 500nm, 180 – 850nm, or 180 – 1100nm Measures Amplitude, Wavelength, Spectral Irradiance, and Power Extensive Software Included International Light Technologies Spectrometers are compact mini spectrometers that measure both the wavelength and amplitude of the targeted light as well as other calibrated measurements. These instruments offer exceptional wavelength accuracy and resolution allowing for use in various sensitivity applications. SpectrILight III software is included with each product, which is a LabView based software for windows that enables seamless spectra collection and analysis. International Light Technologies Spectrometers are available in three wavelength models, UV, UV – VIS, and Broadband each with an included right-angle diffuser. These spectrometers are ideal for applications such as UV Curing Characterization, Plant Photobiology, Fluorescence, Radiometry, and Photometry. Specifications General Type: Symmetrical Czerny-Turner Integration Time: 0.2 ms-1 min Digitizer: 16 bits, 2.5 MHz NIST Certification: NIST Traceable/ ISO17025 Accredited Physical & Mechanical Properties Slit Width (μm): 50 Dimensions (mm): 35.4 x 86 x 110 Optical Properties Spectral Resolution (nm): 0.9 Stray Light (%): <0.2% Wavelength Range (nm): 180 - 500 Focal Length FL (mm): 60.00 Sensor Type of Sensor: CMOS Linear Sensor Dynamic Range: 3450 Electrical Signal to Noise S/N Ratio: +/- 0.21 Hardware & Interface Connectivity Computer Interface: USB 2.0 UART Power Requirement: 300mA@5VDC Environmental & Durability Factors Operating Temperature (°C): 0 to 50 Storage Temperature (°C): -30 to +70 Regulatory Compliance Certificate of Conformance: View ×
