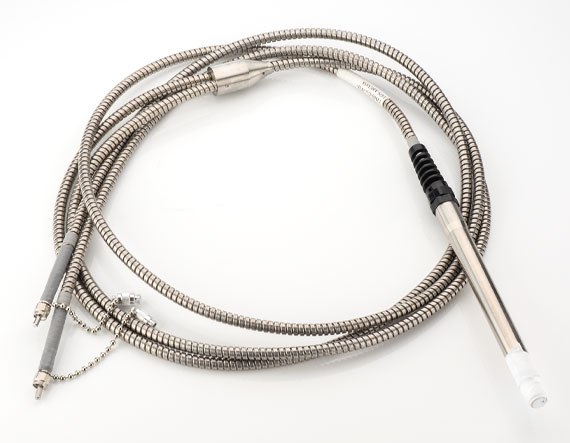

UV-VIS Heavy-Duty Transmission Dip Probe

Product Details Transmission Dip Probes Designed for Reliable In-Solution Absorbance/Transmission Measurements Rugged Stainless Steel or PEEK for Tough Process Conditions and Harsh Environments Flexible Path Lengths Available with Interchangeable Probe Tips Compatible with Ocean Optics Spectrometers and Accessories Ocean Optics Transmission Dip Probes couple to spectrometers and light sources to measure absorbance and transmission in solutions. Choose from ruggedized high-pressure probe ( #90-569 ) for demanding process environments or PEEK-jacketed probes ( #90-570 and #90-571 ) for harsh chemical conditions, spanning UV–VIS to VIS–NIR wavelengths. Easily customize your setup with accessories such as interchangeable probe tips in various path lengths and the protective sleeve ( #90-585 ) for extended durability in corrosive or high-temperature applications. Ocean Optics Transmission Dip Probes are designed for seamless integration with Ocean Optics spectroscopy systems and compatible accessories . Specifications Fiber Connector Type: SMA 905 General Model Number: TI300-UV-VIS Note: Breakout 1 meter from end of the probe Title: UV-VIS Heavy-Duty Transmission Dip Probe Physical & Mechanical Properties Jacket Material: Stainless steel over Teflon tubing Ferrule Length (mm): 127 (without probe tip) Ferrule Material: Stainless steel outer sleeve Ferrule Diameter (mm): 12.7 (1/2″) Bend Radius (mm): 300 Ferrule Diameter (inches): 0.5 Length of Fiber (m): 2 Optical Properties Wavelength Range (nm): 200 – 1100 Path Length (mm): 2, 5, 10, 25 or 50 Environmental & Durability Factors Maximum Temperature (°C): 300 (for probe body) Physical Resistance (psi): 250 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View × Reach 250: Compliant ×
