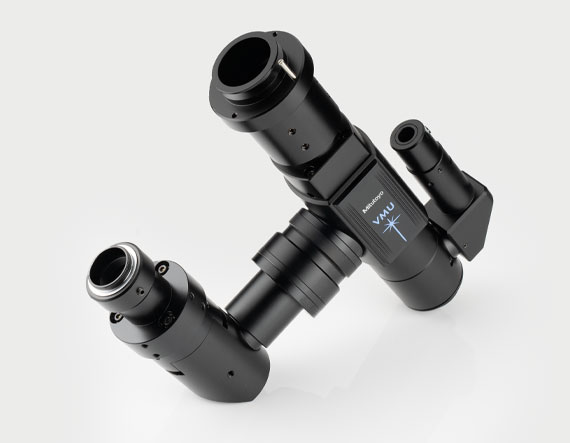

UV-VIS-NIR Nd:YAG Laser Line Vertical Mitutoyo Video Microscope Unit

Product Details Designed for use with Mitutoyo NIR, NUV, and UV Infinity Corrected Objectives Maximum Sensor Size up to 2/3” Ideal for Laser Processing and Machining applications Mitutoyo Nd:YAG Laser Line Video Microscope Units (VMU) allow for quick and easy setup of laser processing systems by connecting an infinity corrected objective to a c-mount camera. Optimized for Nd:YAG laser lines of 266, 355, 532, and 1064nm, these VMUs are designed for use with Mitutoyo UV, NUV, and NIR infinity corrected objective s. These VMUs can also be used as infrared inspection systems when using an infrared light source and an infrared camera. Mitutoyo Nd:YAG Laser Line Video Microscope Units (VMU) are ideal for laser processing and imaging applications such as cutting, trimming, and repair of IC wiring, thin-film processing, and infrared spectral characteristic analysis. A dual-camera laser line VMU option is also available for high and low magnification observation. Specifications General Model Number: 378-508 Range: UV-VIS-NIR Type: Vertical Mount, Brightfield, Erect Image Manufacturer: Mitutoyo Compatible Objectives: M Plan Apo/HR/SL, M Plan NIR/NUV, and M Plan UV Note: Note: Magnification: 1X Tube Lens Optional C-Mount adapter #37-044 available for dual-camera system Physical & Mechanical Properties Weight (g): 1300 Optical Properties Design Wavelength DWL (nm): 266, 355, 523, 1064nm Magnification: 1X Sensor Maximum Sensor Format: 2/3″ Threading & Mounting Mount: C-Mount Mounting Threads: Objective Mounts: M26 x 36 TPI Regulatory Compliance RoHS 2015: Exempt × Certificate of Conformance: View × REACH 241: Contains SVHC(s) ×
