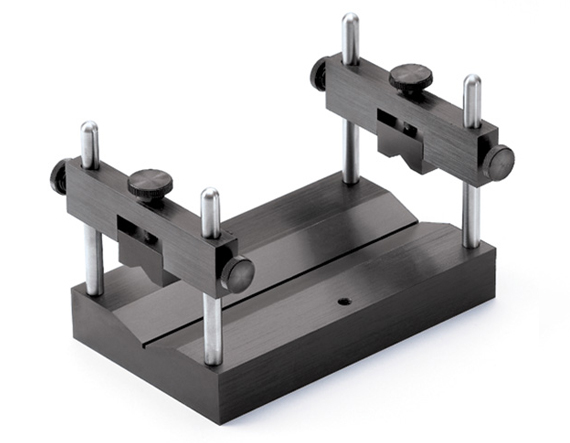

V-Block Base with Clamps

Product Details Adjustable Height Bar Clamp Included with #03-665 Ideal for Mounting Laser Tubes and Large Optical Elements ¼-20 Tap Hole Allows Mounting to 0.50″ Diameter Post Our V-Block base is ideal for mounting laser tubes and optical elements thick enough to stand vertically on edge (such as most achromats). The six ¼-20 tap holes around the base are designed to accept clamp posts, but may also be used to mount the V-Block. A ¼-20 tap hole in the center of the base allows mounting to any 0.50″ diameter post. Adjustable height bar-type clamp secures components in the V-Block. Specifications General Type: Fixed Type of Optics: Cylindrical Tube Physical & Mechanical Properties Construction: Black Anodized Aluminum, Stainless Steel Post Number of Clamps: 2 Threading & Mounting Size of Compatible Optics (mm): 5.6 – 67.9 Compatible Post: ¼-20 Regulatory Compliance RoHS 2015: Compliant × Reach 224: Compliant × Certificate of Conformance: View ×
