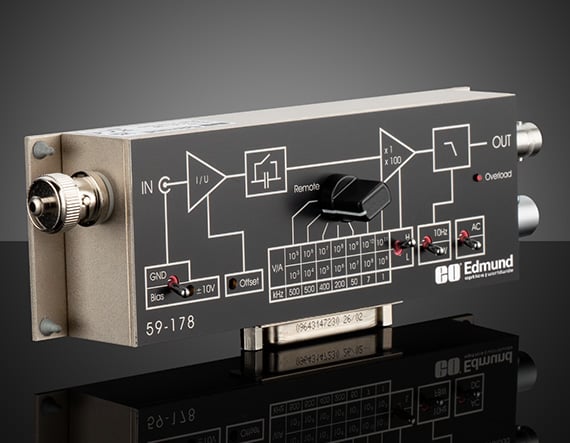

Variable Low Noise Current Amplifier

Product Details Convert Small Currents to Usable Voltages Variable Gain High Speed and Low Noise Designs Current Amplifier Modules are current-to-voltage conversion devices used to amplify a small current from a photodiode or photomultiplier with very low noise. Low Noise and High Speed amplifiers are available with variable gain functionalities. The Low Noise amplifier is a two stage, low-noise amplifier with switchable AC/DC coupling, adjustable bias voltage offset, and a 10Hz lowpass filter. The High Speed model also features AC/DC coupling in addition to an adjustable offset for baseline correction, adjustable bias for use with fast photodiodes, and a switchable 10MHz and 1MHz low pass filters. Note: #59-178 and #59-179 require specified power supplies. Specifications General Remote Control: Yes Physical & Mechanical Properties Weight (g): 320.00 Dimensions (mm): Case Size: 150 x 55 x 44 Electrical Transimpedance Gain (Ω): 10 3 – 10 11 (adjustable in decade steps) Bandwidth (-3 db): 500KHz max. Bias Voltage: Adjustable by trimpot ±10V, max., 22mA Offset Adjustment: Adjustable by trimpot or external control voltage Input Current Noise (fA/√Hz): See datasheet Hardware & Interface Connectivity Power Supply: Power Supply Required and Sold Separately: USA: #59-180 Europe: #59-180 Japan: Not Available Korea: Not Available China: #59-180 Environmental & Durability Factors Operating Temperature (°C): 0 to +60 Regulatory Compliance Certificate of Conformance: View ×
