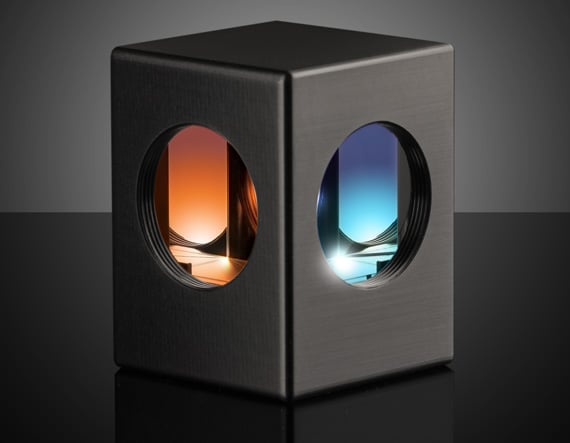

VIS Coated, C-Mounted Non-Polarizing Cube Beamsplitter

Product Details Simplifies Mounting and Alignment Standard Female C-Mount Threaded Holes Additional C-Mounted Beamsplitters , Filters , and Mirrors Available TECHSPEC C-Mounted Cube Beamsplitters offer easy integration into systems, allowing the use of standard off-the-shelf components. The housing is 50mm H x 38mm W x 38mm D, with four C-Mount (1″ x 32 TPI) female threaded apertures. A threaded aperture lid is included to close the unused port. The base has a centered ¼-20 tapped hole for mounting to a post. The TECHSPEC C-Mounted Standard Cube Beamsplitter features a coating for visible wavelengths and MgF2 anti-reflection coated faces. The C-Mounted Visible Non-Polarizing Cube Beamsplitter is designed for the 430 – 670nm wavelength range, and the C-Mounted NIR Non-Polarizing Cube Beamsplitter is designed for the 720 – 1080nm wavelength range. Specifications General Type: Non-Polarizing Beamsplitter Type of Optics: Non-Polarizing Cube Beamsplitter, VIS Coating Beamsplitter Included: Non-Polarizing 50R/50T VIS Cube Beamsplitter Physical & Mechanical Properties Construction: Cube Dimensions (mm): 38.0 x 38.0 x 50.0 Extension Length (mm): 38.0 Housing: Black Anodized Aluminum Optical Properties Angle Tolerance (arcmin): ±2 Coating: Faces: Multi-Layer Anti-Reflection for Visible Region Reflection/Transmission Ratio (R/T): 50/50 Reflection/Transmission Tolerance (%): ±5 Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More N-BK7 Surface Quality: 40-20 Wavelength Range (nm): 430 – 670 Power (fringes) @ 632.8nm: 1.25 Irregularity (fringes) @ 632.8nm: 0.25 Threading & Mounting Mount: C-Mount Enclosure Thread Type: C-Mount (1″ x 32 TPI) Regulatory Compliance Certificate of Conformance: View ×
