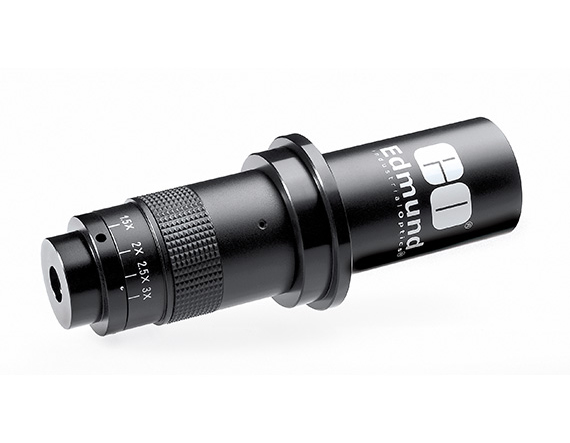

VZM 300 Zoom Imaging Lens

Product Details Designed to Accomodate up to 2/3″ Sensor Size Formats Dependable, Versatile Performance in Compact Designs Analog and Digital Imaging Systems Available VZM Zoom Imaging Lenses enable inspection of a wide range of objects without the inconvenience of changing working distances. In addition, the parfocal zoom allows magnifications to be easily changed without refocusing. These economical lenses are available in working distances ranging from 35mm to 175mm and offer a maximum 2/3” sensor format. Iris versions (i-series) all have locking iris, front filter thread, removable mounting flange, and optional zoom lock. All lenses have a 50mm diameter flange (removable on iris versions except 450i Right Angle) for mounting. VZM Zoom Imaging Lenses are ideal for inspection of integrated circuits and solder joints. Also suited for quality control and laboratory inspection needs, as well as surface analysis. Specifications General Type: High Magnification Zoom Lens Physical & Mechanical Properties Length excluding Threads (mm): 151.00 Maximum Diameter (mm): 56.5 Weight (g): 386.00 Optical Properties Horizontal Field of View, 2/3″ Sensor: 11.4 – 2.8mm Horizontal Field of View, 1/2″ Sensor: 8.0 – 2.0mm Working Distance Tolerance (mm): ±3 Resolution, Object Space: 46.5 – 105 lp/mm Resolution, Image Space: 62 – 35 lp/mm Zoom Ratio: 4:1 Primary Magnification PMAG: 0.75X – 3X Working Distance (mm): 60.00 Lens Wavelength Range: VIS Sensor Maximum Sensor Format: 2/3″ Threading & Mounting Mount: C-Mount Regulatory Compliance Certificate of Conformance: View ×
