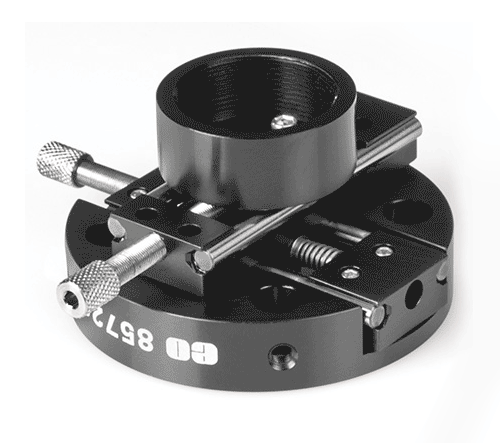

XY Micro Positioning Stage Plate with RMS Thread

Product Details Specialized Plates Designed to Hold and Position Optics Anodized Aluminum Construction with Stainless Steel Screws X-Y Micro Positioning Plate with RMS Mounting Thread TECHSPEC Cage System Adjustable Plates are used to integrate optical components into the TECHSPEC Cage System while providing rotary, tip-tilt, or linear adjustment. Rotary Mounts are available with M6 or ¼-20 mounting threads and are designed to fit within the inner diameter of 25mm cage system plate s . The Kinematic Cage Mounting Plate is compatible with 30mm cage system plates and enables kinematic adjustment of cage system assembles. The X-Y Micro Position Stage Plate also has 6mm rod holes, and features a 7mm clear aperture, X-Y micro-positioner, and an RMS threaded mount for precision mounting alignment. Specifications General Function: Linear (XY) Type of Optics: Objective Physical & Mechanical Properties Plate Inner Diameter (mm): RMS Bolt Circle Diameter for 6mm Dia. Thru (mm): 38.0 Outer Diameter (mm): 50.0 Clear Aperture CA (mm): 7.0 Construction: Black Anodized Aluminum Dimensions (mm): 50 Dia. Thickness (mm): 28.00 Regulatory Compliance RoHS 2015: Compliant × Certificate of Conformance: View ×
