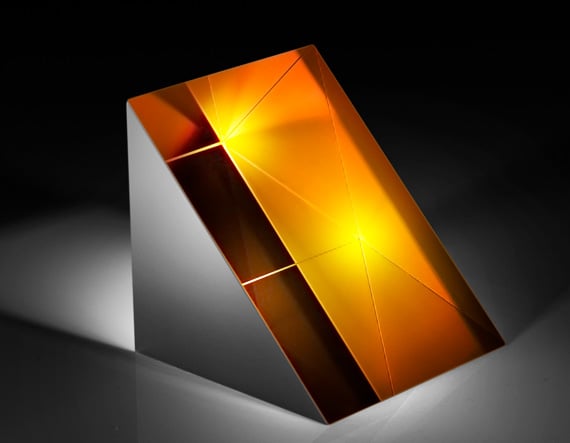

Zinc Selenide, 25.4mm, Uncoated, IR Right Angle Prism

Product Details Special care should be taken when handling Zinc Selenide as it is a toxic material. Always wear rubber or plastic gloves to avoid risk of contamination. CaF 2 , Ge, and ZnSe Substrates Ray Deviation of 90° Ideal for Use with Collimated Sources Additional Infrared Optics Available ISP Optics Infrared (IR) Right Angle Prisms provide 90° or 180° redirection of laser beam or image paths depending on the input prism surface. Available with calcium fluoride (CaF 2 ), germanium (Ge), or zinc selenide (ZnSe) substrates, these right-angle prisms are ideal for a range of IR laser and imaging applications. CaF 2 offer a low refractive index and broad transmission range from 0.2 – 7µm, making it useful for applications requiring high transmission from the UV through the IR. Ge is transmissive from 2 – 14µm with a high index of 4.002 at 11µm and is used in applications where the optical path length needs to be maximized. ZnSe has high, even transmission from 0.6 – 18µm and is typically integrated with CO 2 laser systems that feature a 632.8nm HeNe alignment laser and 10.6µm output beam. ISP Optics Infrared (IR) Right Angle Prisms can be used in combination for beam/image displacement. Note: Special care should be taken when handling Zinc Selenide as it is a toxic material. Always wear rubber or plastic gloves to avoid risk of contamination. Specifications General Type: Right Angle Prism Physical & Mechanical Properties Dimensional Tolerance (mm): ±0.25 Clear Aperture (%): 85.00 Length of Hypotenuse (mm): 35.90 Length of Legs (mm): 25.40 Optical Properties Coating: Uncoated Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Zinc Selenide (ZnSe) Surface Quality: 60-40 Angle Tolerance (arcmin): ±10 Image Orientation: Left-Handed Ray Deviation (°): 90 Wavelength Range (nm): 600 – 18000 Wavelength Range (μm): 0.6 – 18 Surface Flatness (P-V): 2λ Regulatory Compliance RoHS 2015: Compliant × Reach 224: Compliant × Certificate of Conformance: View ×
