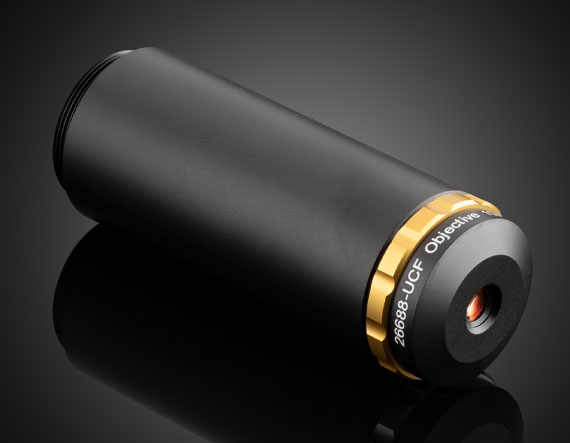

10X, 0.18 NA, UCf Objective

Product Details Compact Finite Conjugate Objectives Mount Directly to a C-Mount Camera Near Diffraction Limited Performance TECHSPEC UCf Objective Series are compact objectives that are finite conjugate by design, but achieve similar imaging performance of infinity corrected objectives and do not require a secondary tube lens to generate an image on the sensor. Available at 2X, 4X, 5X, 10X, 15X, and 20X magnifications. These objectives mount directly to a C-mount camera without additional extension tubes. Specifications General Type: Fluorite Style: Finite Conjugate Manufacturer: Edmund Optics Physical & Mechanical Properties Length (mm): 78.75 Maximum Diameter (mm): 29 Weight (g): 67 Optical Properties Horizontal Field of View, 2/3″ Sensor: 0.88 Horizontal Field of View, 1.1″ Sensor: 1.408 Focal Length FL (mm): 8.00 Magnification: 10X Numerical Aperture NA: 0.18 Resolving Power (μm): 3.70 Depth of Field (μm): 8.29 Working Distance (mm): 8.1 Wavelength Range (nm): 400 – 700 Field Number (mm): 17.6 Sensor Maximum Sensor Format: 1.1″ Threading & Mounting Mounting Threads: C-Mount Environmental & Durability Factors Operating Temperature (°C): +10 to +40 Regulatory Compliance Certificate of Conformance: View ×
