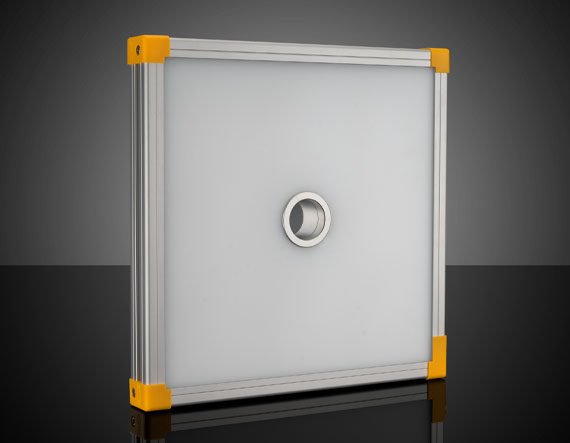

Blue 300 x 300 Flat Dome Light

Product Details Dome Light Performance in a Flat Housing Integrated Analog Controller for Precise Intensity and Dimming Anti-Reflection System to Absorb Stray Light Continuous or Strobe mode Effilux Flat Dome Lights achieve diffuse illumination similar to standard dome lights but with a thinner, more compact housing. These flat dome lights provide a large imaging area for increased depth of focus and field of view. The convenient integrated analog controller allows precise control of power and intensity without the need for additional components. Effilux Flat Dome Lights offer greater than 90% uniformity and feature an anti-reflection system that absorbs unwanted light. Flat Dome Lights are ideal for imaging textured, shiny, or uneven surfaces. Specifications General Model Number: EFFI-FD-300-300-465 Type of Illumination: LED Illuminator Manufacturer: Effilux Geometry: Flat Dome Light Illumination Mode: Constant Physical & Mechanical Properties Dimensions (mm): 339 x 339 x 43.2 Weight (g): 3500 Active Area (mm): 300 x 300 Optical Properties Color: Blue Wavelength (nm): 465 Electrical Power Consumption (W): 65 Hardware & Interface Connectivity Input Voltage (V): 24 Power Supply: Power Supply Required and Sold Separately: USA: #15-874 Europe: #15-875 Japan: #73-409 Korea: #73-409 China: #15-874 Regulatory Compliance RoHS 2015: Compliant × Reach 224: Compliant × Certificate of Conformance: View ×
